current location:Home > Products > Rental LED display

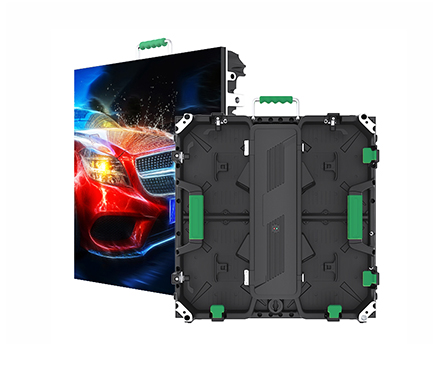

Rental LED display

Rental LED display

Huabangying optoelectronics always focuses on the R & D and production of LED full-color display screen, and constantly pays attention to product quality and innovation. The professional R & D team, which accounts for 10% of the total employees of the company, has laid the foundation for the R & D of new products of Huabang Ying optoelectronics and the special application of customers.

  • P2.976 rental LED display
  • P3.91 rental LED display
  • P4.81 rental LED display
Product Features
  • 1

    The module adopts automatic glue filling machine to ensure even, smooth and good waterproofing.

  • 2

    The modules have passed three anti-paints to protect the circuit board and its related equipment from environmental impact. It has excellent insulation, moisture-proof, anti-leakage, anti-vibration, anti-corrosion, anti-aging, corona resistance, high temperature resistance and other characteristics.

  • 3

    The box body is made of aluminum-magnesium-zinc alloy custom-made die-cast aluminum box, which is not easy to deform, corrosion-resistant, fast heat dissipation, prolong the service life of the product, light and thin design, easy to transport and install.

  • 4

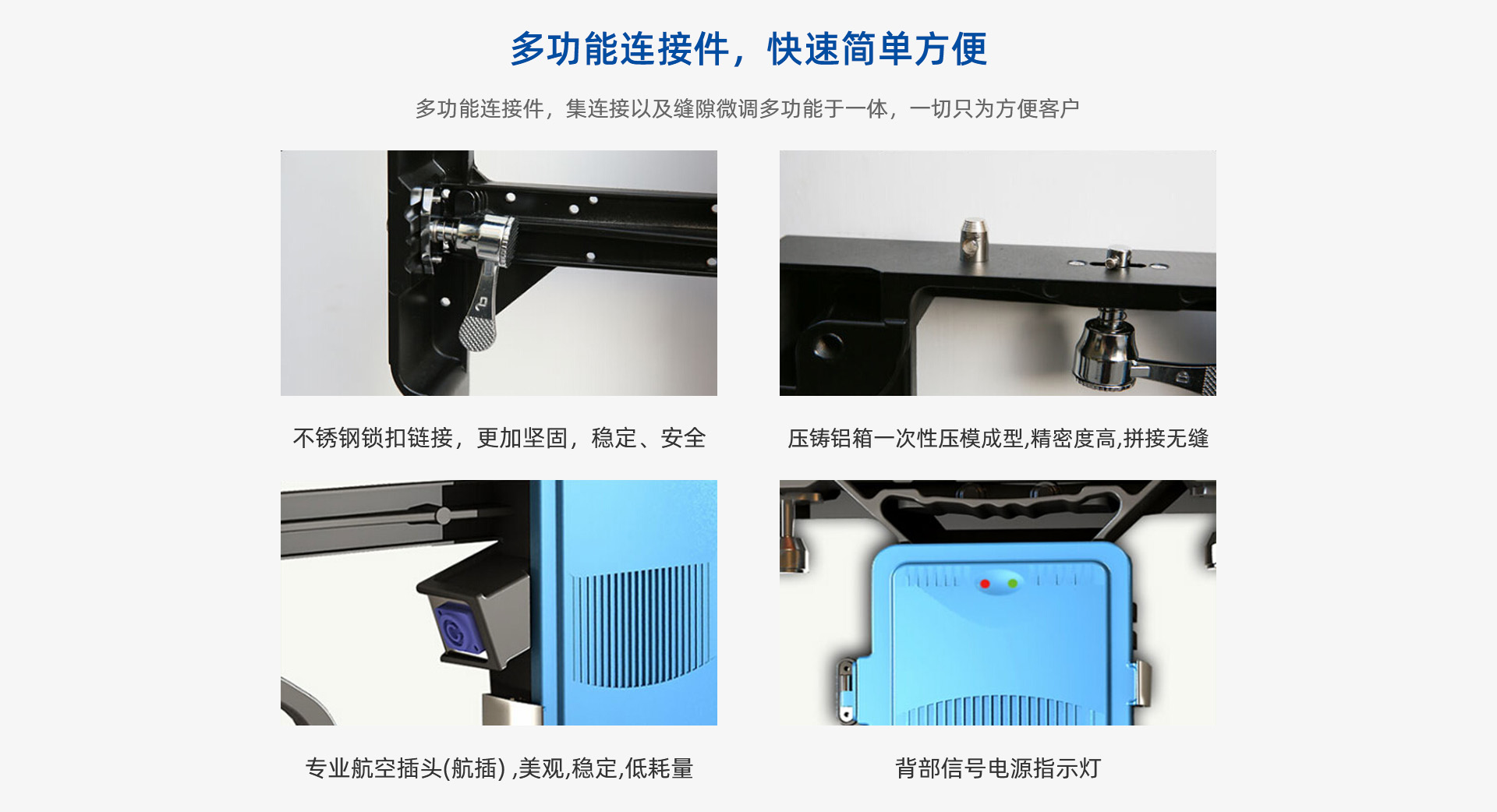

    The stainless steel lock connection is more sturdy, stable and safe.

  • 5

    One-time die-cast aluminum die-casting, high precision, seamless splicing.

  • 6

    Professional aviation plug, beautiful and stable, low loss.

  • 7

    The power supply can be customized with double backup to prevent unexpected situations.

  • 8

    Can be customized aviation distribution cabinet, convenient and casual.

Technical Parameters
  • P2.976 rental LED display
  • P3.91 rental LED display
  • P4.81 rental LED display
Product number HBY-YN2.976 brightness 800-1200nits Full screen resolution 112910
Module size 250*250mm Contrast 7000:1 Average power 240
Pixel pitch 2.976mm Refresh rate 3840 Service life 10W hours
Product number HBY-YN3.91 brightness 800-1200nits Full screen resolution 65400
Module size 250*250mm Contrast 7000:1 Average power 240
Pixel pitch 3.91mm Refresh rate 3840 Service life 10W hours
Product number HBY-YN4.81 brightness 800-1200nits Full screen resolution 43222
Module size 250*250mm Contrast 7000:1 Average power 240
Pixel pitch 4.81mm Refresh rate 3840 Service life 10W hours


Product detailed parameters

Product number HBY-YN2.976 HBY-YN3.91 HBY-HY4.81
Module composition Pixel structure SMD21 SMD2121 SMD2121
Pixel pitch (mm) 2.976 3.91 4.81
Full screen resolution (dot/㎡) 112910 65410 43222
Module size (mm) (W*H) 250*250mm 250*250mm 250*250mm
Module resolution (W*H) 168*168dots 128*128dots 104*104dots
Cabinet composition Cabinet size (mm) (W*H*D) 500 * 500 * 95mm
Cabinet resolution (W*H) 336 * 336dots 256*256dots 208*208dots
Cabinet weight (KG) 10±0.5KG
Optical parameters White balance brightness (nits) 800-1200CD/m2
Color temperature (K) 3000-10000 adjustable
Viewing angle (°) Horizontal viewing angle 160° Vertical viewing angle 140°
Chroma uniformity Within ±0.003Cx, Cy
Contrast 7000:1
Electrical parameters Peak power consumption (W/㎡) 800 800 800
Average power consumption (W/㎡) 240 240 240
Power demand AC100-240V(50-60Hz)
Processing performance scanning method 28S constant current drive 16S constant current drive 13S constant current drive
Frame change frequency (Hz) 50&60
Refresh frequency (Hz) 3840
Use parameters Service life 100,000 hours
Working stability -10-40
Storage stability range -20-60
certified product  Picture 1.png
Rental LED display Application field
  • Educational publicity: interactive systems such as campus areas, training institutions, etc.

  • Public places: information display in airports, railways, subways, highways and other transportation industries, libraries, museums, shopping malls and other places.

  • Commercial presentations: TV studios, large-scale performances and commercial exhibitions, hotel lobbies, enterprises and institutions.

  • Government departments: convenient publicity, handling guides, open government affairs, etc.
